VH-250

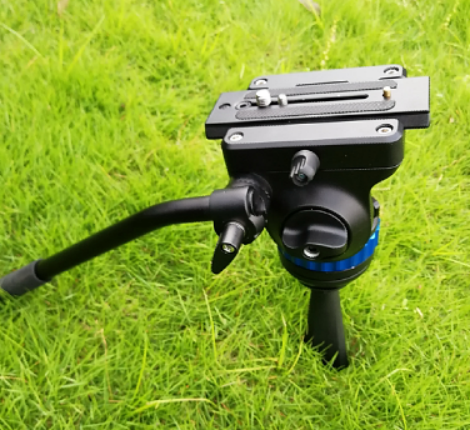

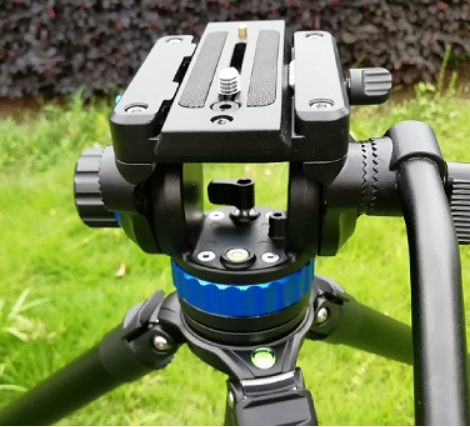

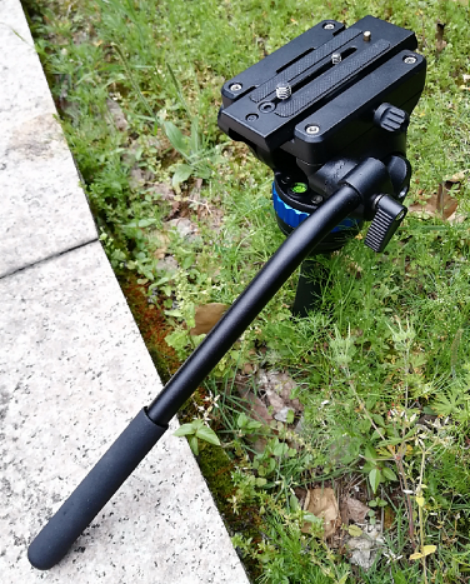

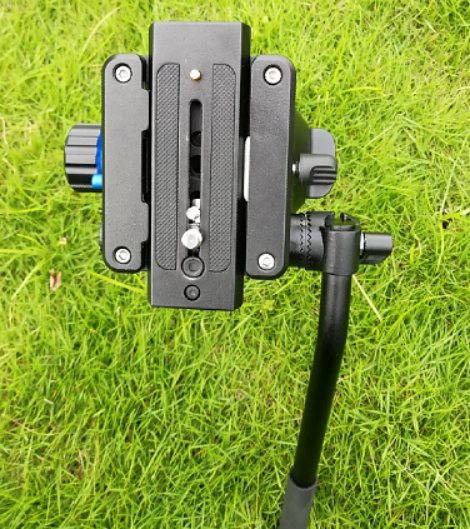

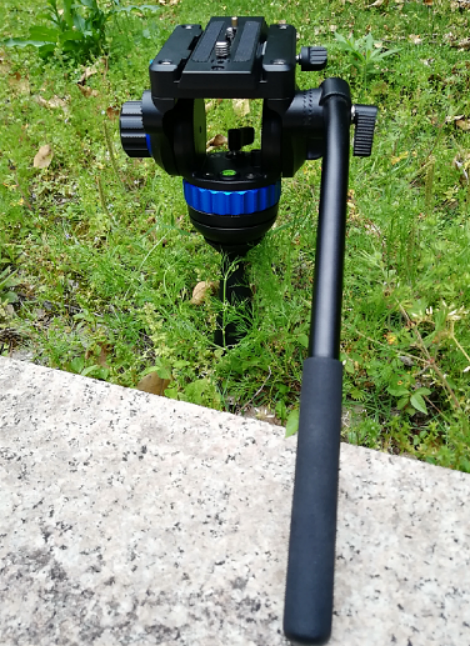

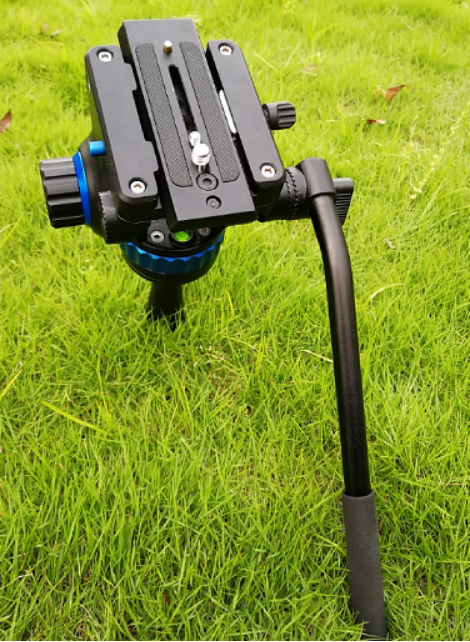

VH-250 Variable Fluid Video Head

Description:

1. Pamoramic and Tilt fluid is variable / adjustable.

2. Panoramic fluid is variable / adjustable (by turning the bottom blue ring)

3. Tilt fluid is variable / adjustable (by turning the left blue device)

4. Counter balance is variable / adjustable (by turning the right set knob)

5. Lock or unlock the pan by turning the Mid lock lever.

6. Lock or unlock the tilt by turning the right lock knob.

7. 75mm ball base can be converted to be a flat base.





Specifications:

Pan fluid / Tilt Fluid/ Counter balance: Variable / Adjustable

Payload：6 kgs

Bowl Size:75mm

N.w: 1755g

Height: 14cm

Plate size: 5 x 14cm

Handle length: 30cm

Tilt Angle: -90 to +62 degree.
