U98TS

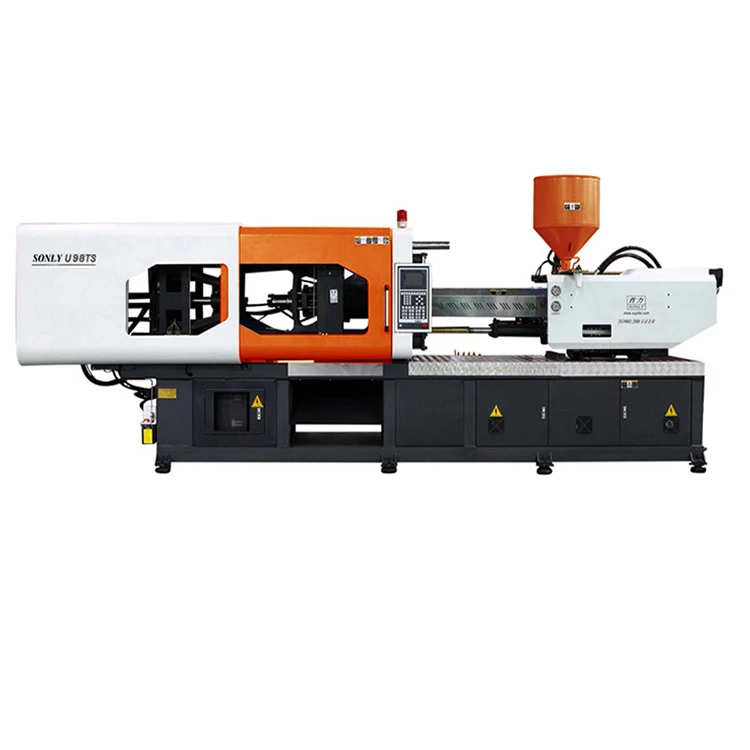

Professional 100 gm Full Automatic Injection Mini Molding Plastic Mold Machine  U98TS



Product details


Products Description
U98TS
Unit
A
B
C
INJECTION UNIT
SCREW DIAMETER
mm
32
35
38
SCREW L/D RATIO
L/D
24.1
22
20.3
SHOT VOLUME(THEORETICAL)
cm3
133.7
160
188.6
INJECTION PRESSURE
Mpa
232.1
194
164.6
SCREW SPEED
rpm
210
SHOT WEIGHT(THEORETICAL)(PS)
g
122
146
172
SHOT WEIGHT(THEORETICAL)(PS)
oz
4.303
5.15
6.067
CLAMPING UNIT
CLAMPING FORCE
Kn
980
OPEN STROKE
mm
320
SPACE BETWEEN TIE BARS(W*H)
mm
365*360
MAX.MOULD HEIGHT
mm
360
MIN.MOULD HEIGHT
mm
120
EJECTOR STROKE
mm
100
EJECTOR FORCE
Kn
38
EJECTOR NUMBER

4+1
DIE HOLE DIAMETER
mm
125
OTHERS
SYSTERM PRESSURE
Mpa
16
MOTOR POWER
Kw
9
HEATING POWER
Kw
10
OIL TANK CUBAGE
L
125
MACHINE WEIGHT
Ton
2.8
BOUNDARY DIMENSION(L*W*H)
m
4.34*1.24*1.9
SERVO DRIVER CAPACITY
Kw
11
