MIA-13

Microscpe Full HDMI 1080P  SCREEN   MIA-13

* Full HDMI 1080P@60FPS standard

Camera, using sony HD high sensitivity

CMOS sensor

* 9” display, image captured or recorded via TF

* Support sync output to monitor and computer

* Built-in YoungWin OS, support more than 20 kinds of measurement graphics

3. Production introduce

3.1 Installation and operation

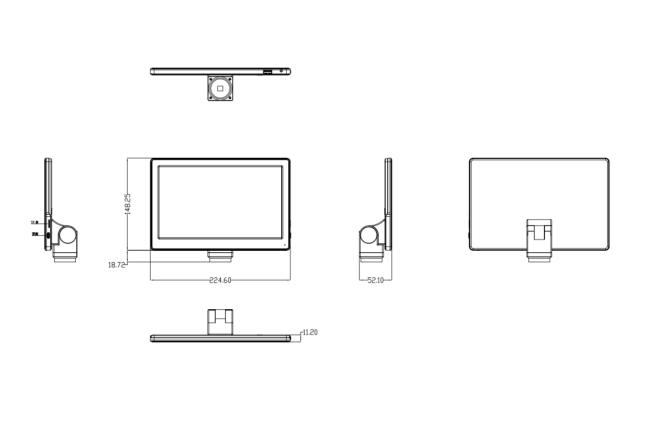

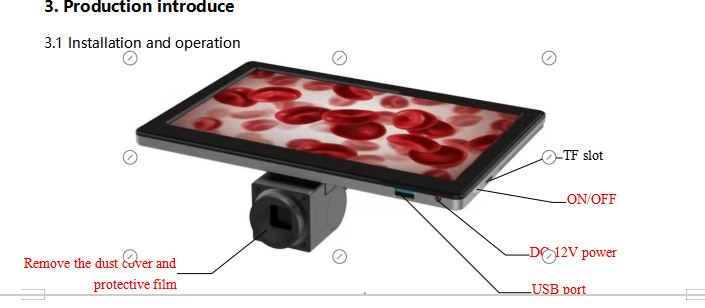

3.1.1 Remove the dust cover and the plastic cover film in the screen and put the screen to the C-mount.

3.1.2 Connect the mouse to the USB port.

Note: USB2.0 Hub can be used to USB port if more USB ports neeed, so that more devices can be used.

3.1.3 TF card for image saving has been inserted into the screen in factory.

3.1.4 Connect DC 12V power supply, the camera works automatically. Turn on the screen.

3.1.5 Move the mouse to the left lower corner in the screen to show the setting and set the parameter.

Note: The On/off Button for Screen is only for turn on or off the screen, and it is not for power on or off of

the camera. The camera is on or off automatically after the DC power supply insert or not.

The last function and the dialog box should be closed before the next function and the dialog box would be

used.

3.2 Interface Function

Connect DC 12V power supply, the camera works automatically. Turn on the screen.
