V-160

3D-Damping Video Tripod  V-160

Description:

1. Pamoramic and Tilt damping / fluid is variable / adjustable.

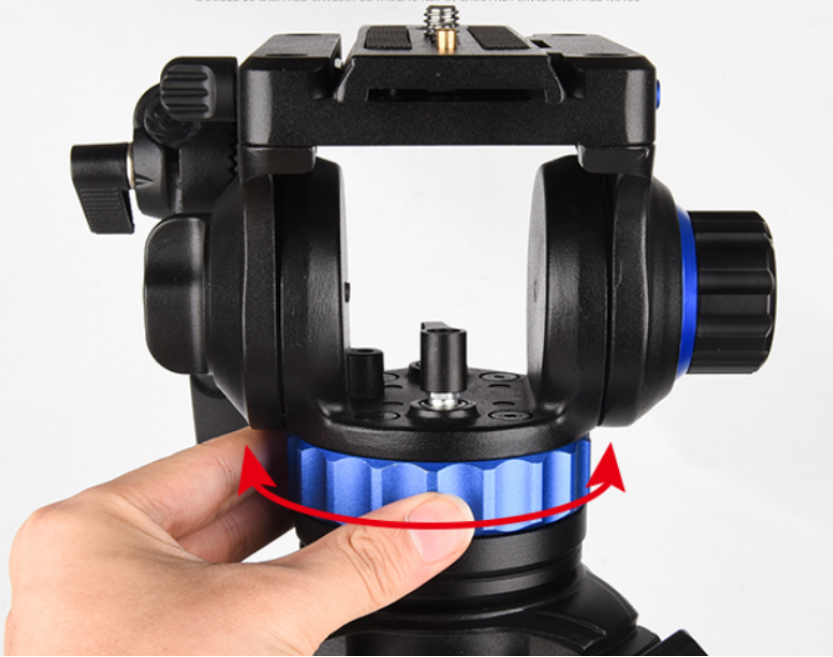

2. Panoramic damping is variable / adjustable (by turning the bottom blue ring)

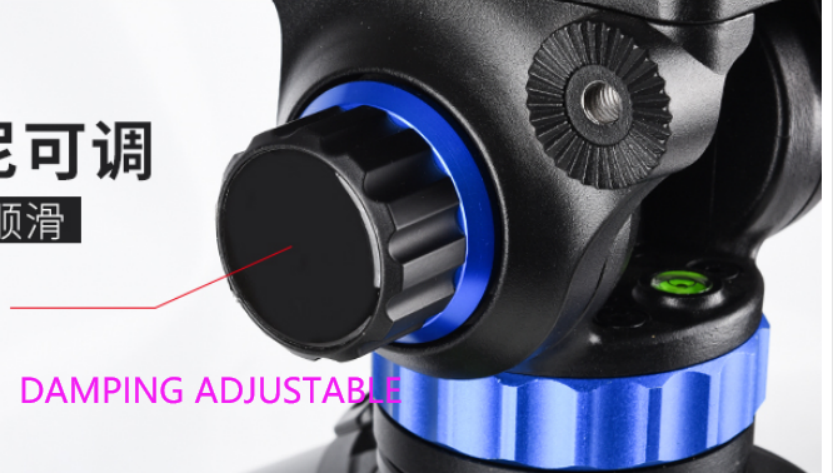

3. Tilt damping is variable / adjustable (by turning the left blue device)

4. Counter balance is variable / adjustable (by turning the right set knob)

5. Lock or unlock the pan by turning the Mid lock lever.

6. Lock or unlock the tilt by turning the right lock knob.

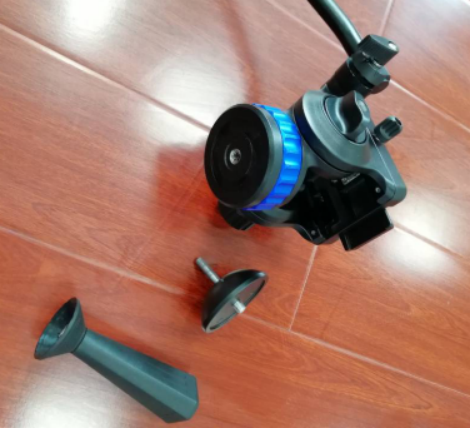

7. 75mm ball base can be converted to be a flat base.

8. All metal 34.5mm large size tripod with 3 (high -midium-low) leg angles, very strong, very stable

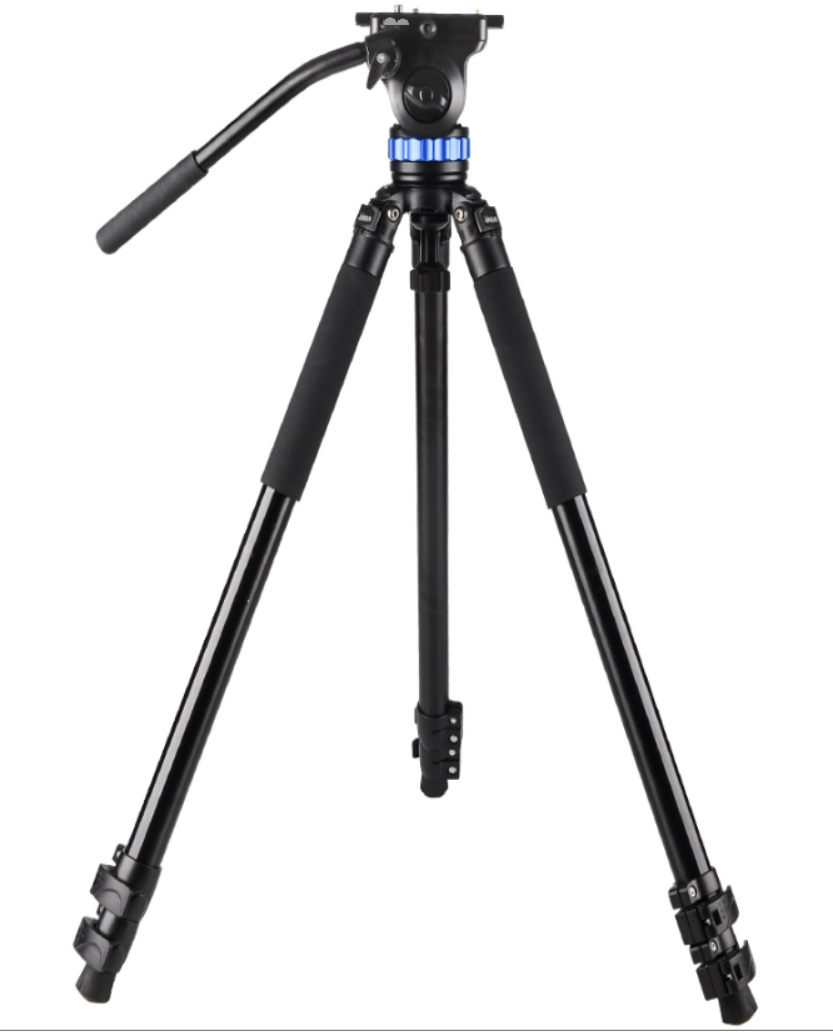

（Tripod + Head） specifications:

Max Height = 180cm

Folded=84 cm

Leg Tube Diameter = 34.5mm

N.W: 4200 g

Pay Load: 10 KGS

------------------------

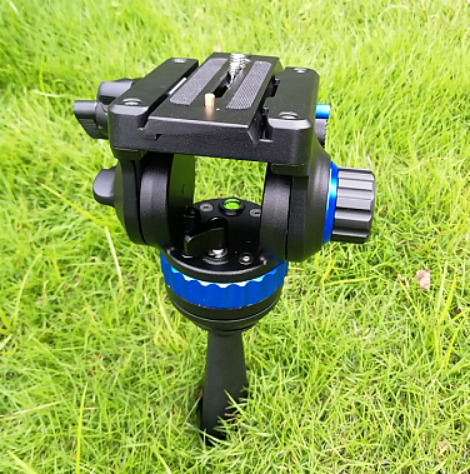

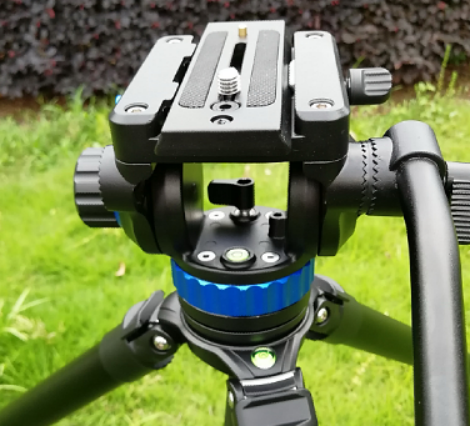

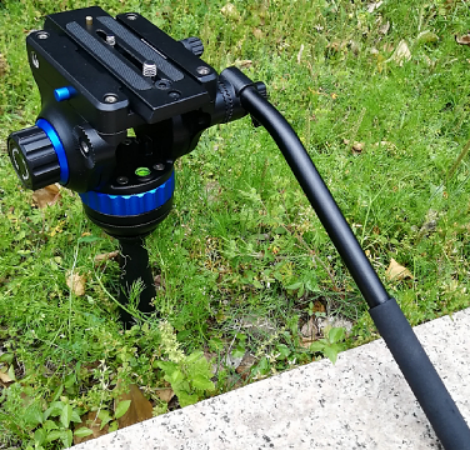

Video head Specifications:

Pan fluid / Tilt Fluid/ Counter balance: Variable / Adjustable

Payload：10 kgs

Bowl Size:75mm

Head N.w: 1755g

Height: 14cm

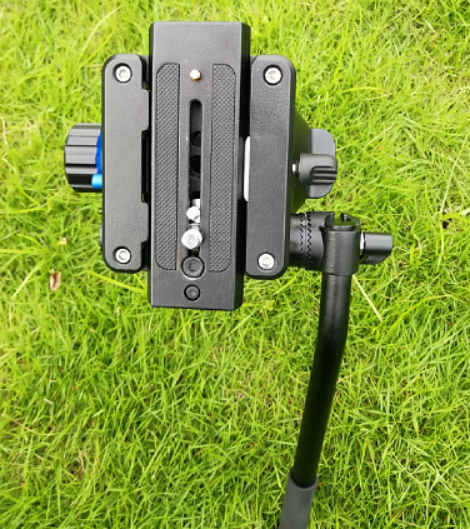

Plate size: 5 x 14cm

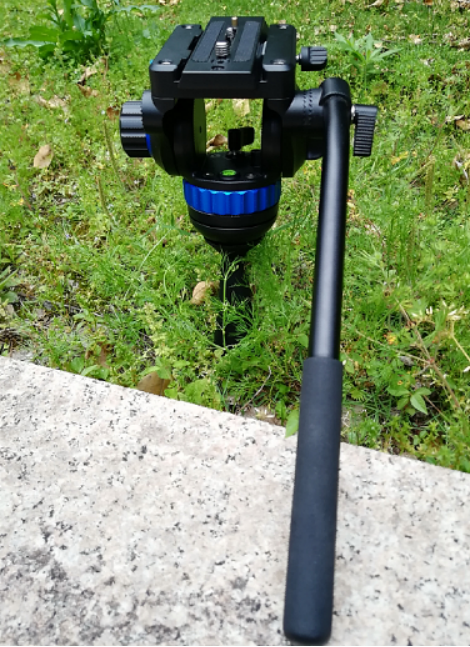

Handle length: 30cm

Tilt Angle: -90 to +62 degree.
